Product name: HDP Series Digital Torque Tester
Category: ATTONIC Product model: HDP系列
Product Usage:
1. Measure the screwing in and out torque (torque increase and torque relaxation).
2. Torque measurement of various other rotating tools (connectors may be required).
3. Example of using torque measurement data.
4. Calculate the hole diameter of the perforated screw, which can be used as a reference.
5. Classify the screws according to the required torque value.
6. Classification according to the tightening degree of the screw.
7. Destructive testing of small parts.
8. Quality control of plastic threads and components.
main feature:
1. The memory can store about 100 measurement data at a time.
2. Calibration of the maximum, minimum and average values of the torque measurement.
3. The torque display value can be automatically cleared.
4. The torque display value is automatically corrected.
5. The first peak measurement mode makes it possible to measure the slip torque.
6. The peak value of the torque is locked before the display value is reset to determine the accuracy of the instrument torque setting.
7. Both directions of rotation can be set to facilitate the measurement of the torque when tightening or loosening.
8. When measuring torque counterclockwise, a negative sign is added before the displayed value to distinguish.
9. Display the measurement of the peak value of the captured torque until the button is pressed to ensure the accuracy of the recording.
10. Can be integrated into the statistical process control system.
11, compact, lightweight, rechargeable battery power and other characteristics make the instrument has good portability.
12. The data output can be analog waveform signal or digital signal, which is convenient for various applications. (requires an optional analog line)
Technical Parameters:
| 型號 | HDP系列 數碼扭力測試儀 | ||
精度 | 在± 0.5%范圍內（滿刻度） | ||
測量方式 | Track Peak | ||

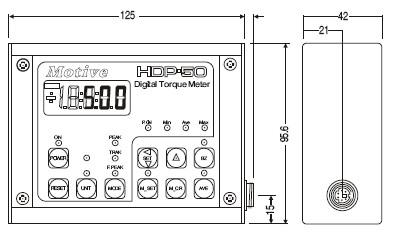

尺寸 | 扭矩顯示部 | 125*95.6*42 | |
檢測部 | 104（L）×Φ21 | 160（L）×Φ34.5 | |
檢測部刀頭插口 | MOTIVE 4 or 1/4 Hex | MOTIVE 5 or 1/4 Hex | |
重量 | 扭矩顯示部 | 780g | |
檢測部 | 68g | 250g | |
檢測器線 | 1.7m（訂貨編號：DPC-0506） | ||
電源（充電時間） | 1.2V NIMH×5個 1000mA（6小時以內） | ||
充滿電連續充電時間 | 8小時 | ||
電池壽命 | 約可充電300次 | ||
專用充電器 | 輸入電壓：AC100V-120V or 220-240v | ||
輸出電壓： DC7.2V 120mA | |||
Model specifications:
| 型號 | HDP-5 | HDP-50 | |
峰值時測量范圍 | N．m | 0.015-0.500 | 0.15-5.00 |
N.cm | 1.5-50.00 | 15-500 | |
Ibf.In | 0.15-4.40 | 1.5-45.0 | |
Kgf.cm | 0.15-5.00 | 1.5-50.0 | |

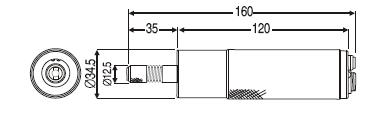

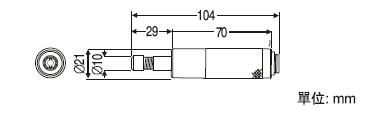

Model specifications:
Sensor unit:
HDP-5 (H4 adapter)
HDP-50 or higher (6.35mm hex adapter)
Precautions:
1. Read the instructions carefully before using this product.
2. This product is only used for measurement.
3. Avoid misuse or rude treatment.
4. Do not disassemble or damage this product.
